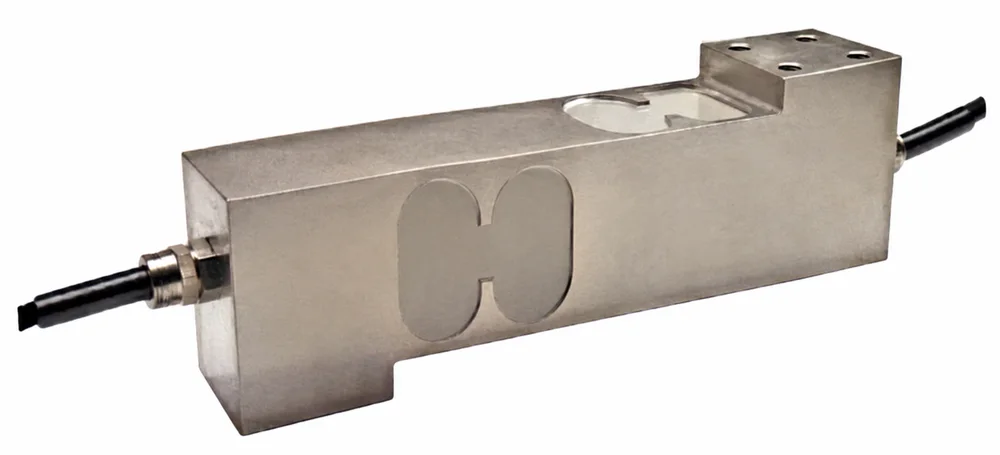

Supplier-derived AI reference illustration. It does not establish the geometry, dimensions or identity of this requested MXL configuration.
Review the requested measurement envelope.
This model page is an engineering request sheet. The identifier and target envelope do not establish a released stock item, approved dimensional drawing or verified replacement.
Review item
Requested MXL configuration
Measured components
2-Axis Thrust & Torque [Fz, Mz]
Force capacity target
Fz: 20 N–50 kN requested
Moment capacity target
Mz: 0.1–500 N·m requested
MXL dimensions and mounting
Drawing review required
Electrical interface
Per-axis bridge input/output resistance, excitation, sensitivity and pinout to confirm
Performance evidence
Crosstalk, combined loads, uncertainty, temperature behavior and safe/ultimate limits to confirm
Resolve the details specific to this configuration.
Measure axial force and reaction torque, not two orthogonal force components.
For propeller testing, include thrust, torque, rotor dynamics, fixture stiffness and guarding in the test-system design.
For drilling, define axial preload, cutting torque, duty cycle and permissible bending load.
Published third-party reference / separate from MXL approval
FUTEK MBA500, cited aluminum variant
Ø50.3 × 63.5 mm cited body; allow separate cable exit clearance
350 Ω nominal; nominal 2 mV/V for 50–100 lb variants or 3 mV/V for 200 lb; maximum excitation 18 V
Separate Fz and Mz cable channels; WC1 wiring for the cited variant
FI1451-A; current linked PDF has 3 pages including terms · Reviewed 2026-10-31. The cited document covers particular load/torque combinations and material. Other part-specific MBA500 drawings can differ.
Confirm independent component ranges and the worst simultaneous load event.
Approve both mounting faces, clearances, fastener engagement and the cable route.
Match excitation, bridge loading, nominal sensitivity and controller input range.
Agree on calibration evidence, useful bandwidth, timing and environmental requirements.
Send the actual original-model revision for replacement work. CAD and lead time are confirmed against the approved configuration rather than inferred from the reference name.
Compare other MXL-2D configurations.
Requested configurations — approval and quotation required
Configuration / measured components
Requested force capacity
Requested moment capacity
MXL dimensions / interface
Calibration / cross-axis limits
Configure
MXL-2D-XY
2-Axis Biaxial [Fx, Fz or Fx, Fy]
20 N–50 kN requested
Not measured
Drawing review required
Calibration, crosstalk, safe/ultimate overload and combined-load limits to confirm
