Engineering resources / 2026-10-31-r2

Multi-axis load cell engineering resources.

Download an MXL request worksheet, review the reference evidence, and specify the documents you need with the quotation.

Download a model review sheet ↓Request drawings or software →

Available to download

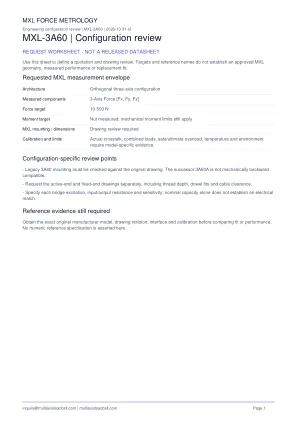

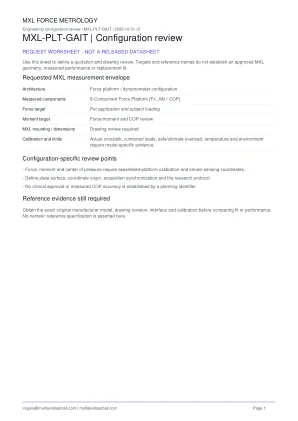

Eight model-specific PDF review worksheets and an educational matrix CSV. A six-axis quotation worksheet is also available. Each is labeled for its actual purpose.

Confirm for the supplied configuration

Approved STEP CAD, released datasheets, serial calibration records and software versions are requested through engineering.

Download the measurement envelope and review checklist.

These two-page worksheets preserve the requested force and moment ranges, model-specific checks and any verified third-party reference. They are request documents, not approved MXL specifications or calibration records.

Tell engineering which release files you need.

Choose a configuration and the records needed for your review. The next page keeps these choices in the web RFQ and email template, including when JavaScript is disabled.

For software, include operating system, controller, module/firmware version and the actual interface. A generic protocol name does not establish a supported SDK or ESI file.

Documents to request

Read the original reference and its revision.

These sources describe the named manufacturers. They help define a review and do not establish MXL dimensions, performance, manufacturing identity or fit. Original drawings remain on the manufacturer’s site.

Reference facts reviewed on 2026-10-31; variants and source updates still require confirmation
ReferenceReview routeSource revision / scopeBoundary

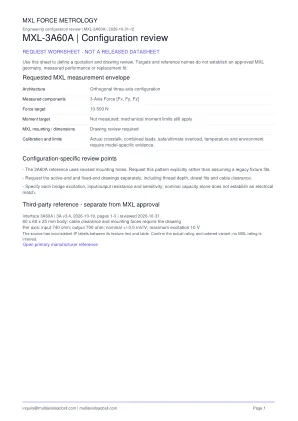

Interface 3A60A ↗MXL-3A60A3A v3.4, 2026-10-19, pages 1–3

Reviewed 2026-10-31

The source has inconsistent IP labels between its feature text and table. Confirm the actual rating and ordered variant; no MXL rating is inferred.

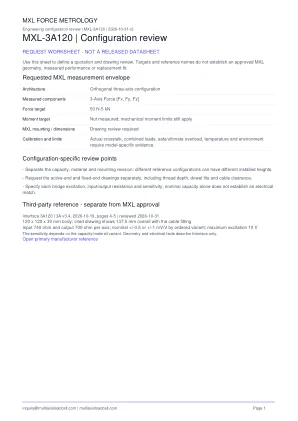

Interface 3A120 ↗MXL-3A1203A v3.4, 2026-10-19, pages 4–5

Reviewed 2026-10-31

The sensitivity depends on the capacity/material variant. Geometry and electrical facts describe Interface only.
FUTEK MTA400 ↗MXL-3A-MTA400FI1468-A, specification page and drawing page 2

Reviewed 2026-10-31

Older catalogs show different sensitivity values. Shared assembly input resistance must not be counted once per axis when estimating source current.

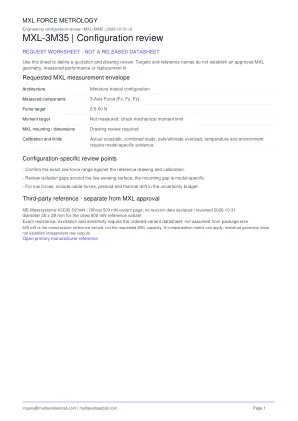

ME-Meßsysteme K3D35 500mN ↗MXL-3M35Official 500 mN variant page; no revision date declared

Reviewed 2026-10-31

500 mN is the manufacturer reference variant, not the requested MXL capacity. A compensation matrix can apply; miniature geometry does not establish independent raw outputs.

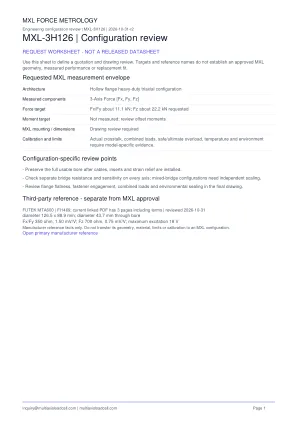

FUTEK MTA600 ↗MXL-3H126FI1469; current linked PDF has 3 pages including terms

Reviewed 2026-10-31

Manufacturer reference facts only. Do not transfer its geometry, material, limits or calibration to an MXL configuration.

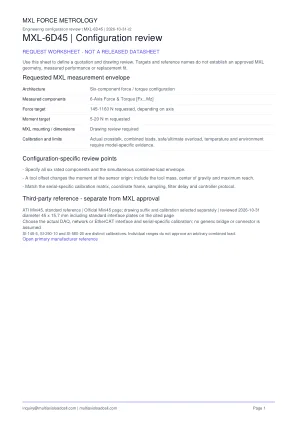

ATI Mini45, standard reference ↗MXL-6D45Official Mini45 page; drawing suffix and calibration selected separately

Reviewed 2026-10-31

SI-145-5, SI-290-10 and SI-580-20 are distinct calibrations. Individual ranges do not approve an arbitrary combined load.

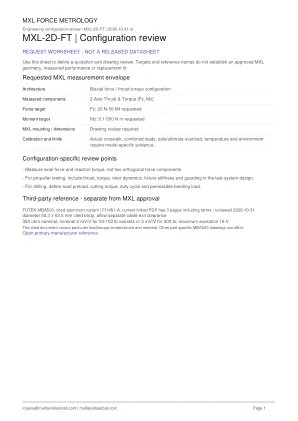

FUTEK MBA500, cited aluminum variant ↗MXL-2D-FTFI1451-A; current linked PDF has 3 pages including terms

Reviewed 2026-10-31

The cited document covers particular load/torque combinations and material. Other part-specific MBA500 drawings can differ.
