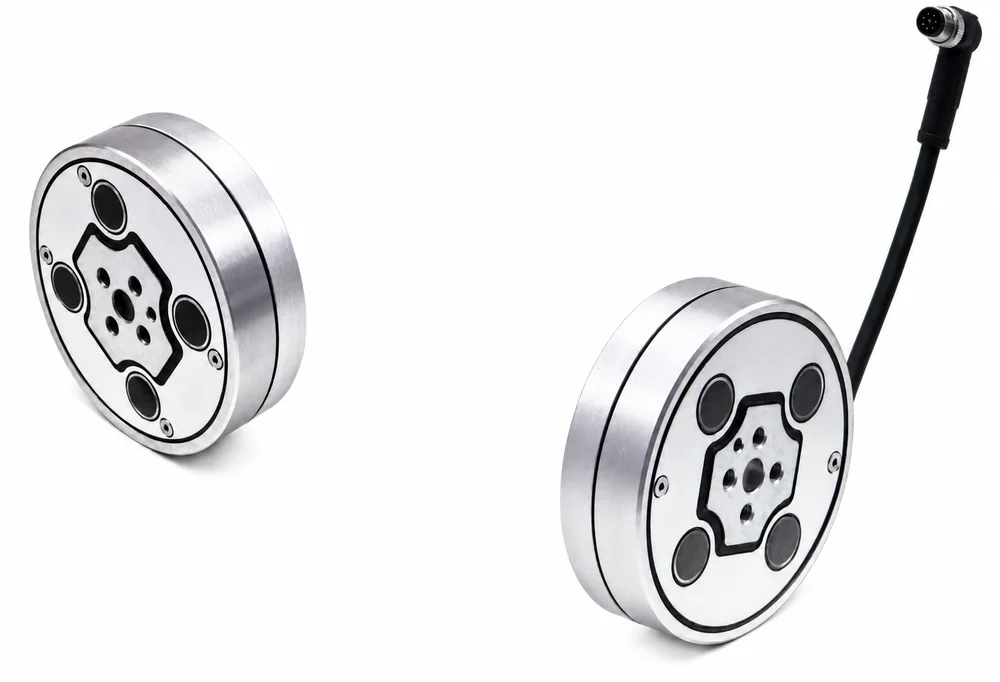

MXL-6D / Engineering + procurement
Get a quote you can compare. Define the sensor, acquisition hardware, calibration and integration work in one itemized package.
MXL sensor price: configuration-specific quotation. Send six component ranges, quantity and your required output to receive a scoped offer.
Compare the same deliverables
A six axis load cell price is only comparable when the six-component range and system boundary match. Ask for sensor-only and complete-package subtotals, identify one-time engineering work, and keep optional items separate.
| Quotation line | What to identify | Question to resolve |
|---|---|---|
| Sensor & mechanical package | Model, all six ranges, combined-load envelope, mounting plates and drawing revision | Does the line include both interface plates and any adapter? |
| Cables & connectors | Cable length, connector part numbers, pinout, strain relief and extension limits | Are the sensor cable, interface cable and mating connectors separate items? |
| Acquisition & power | Raw-channel count, excitation, synchronous sampling, digitizer, supply and output interface | Is engineering-unit conversion included, and where is the matrix applied? |
| Calibration & matrix | Serial-specific calibration, units, origin, matrix revision and acceptance criteria | Is recalibration, temperature testing or external accreditation included or separately quoted? |
| Software & controller | OS, driver/API revision, example code, license, bus profile and supported controller | Does the offer include only sample software, or validated support for your controller? |
| Delivery & commercial scope | Quantity, currency, validity, destination, trade term, packing, freight, taxes and payment terms | Which costs are included, and when does the confirmed lead time start? |
The worksheet is a blank purchasing aid. Enter written supplier quotations in a consistent currency and keep source revisions attached.
System cost
A matrix-coupled six-axis sensor does not necessarily provide one raw channel per measured component. The package needs a suitable acquisition path, a matching calibration matrix and the agreed engineering units.
ATI’s DAQ manual explains serial-specific matrix conversion and states that raw strain channels are not in one-to-one correspondence with Fx, Fy, Fz and moments. Its calibration-file service requests a sensor serial number or sales order. These are third-party integration references, not MXL calibration evidence.
If you intend to retain an amplifier, use the electrical checker and DAQ guide, then request a wiring and conversion review.
MXL electronics budget request
MXL-BOX6-ECAT option
This amount is the existing six-channel electronics option in the MXL inquiry form. It is not a six-axis sensor price or a binding package offer. Request confirmation of the hardware, matrix processing, supported output, software, license and delivery scope.
Confirm the configured package →Sensor quotation
A miniature low-force package, an industrial wrist sensor and a heavy test sensor are separate quotation cases. Send Fx/Fy/Fz, Mx/My/Mz, simultaneous peaks, mounting constraints and annual quantity.
Review a micro six-axis requirement →The final written offer controls price, included calibration, software, availability and delivery. Reuse, origin, compliance documentation and ongoing support should be confirmed for the exact configuration.
Before comparing totals
For example, a lower sensor-only amount may leave you to purchase a digitizer and implement matrix processing. An integrated digital offer may include those items but still require a controller license or custom adapter. Compare deliverables before calculating a saving.
Review available worksheets and request product evidence →MXL sensor pricing is provided by configuration-specific quotation. State all six force and moment ranges, quantity, mechanical envelope and output interface so the sensor, electronics and integration scope can be priced together.
The quotation must identify this explicitly. A sensor-only line, a sensor with analog conditioning and a calibrated digital package have different deliverables. Request separate line items and a named interface.
No. It is a website budget request for the MXL-BOX6-ECAT electronics option. It is not the sensor price or a binding package quotation; hardware, matrix processing, software, controller support and delivery need written confirmation.
Ask for a bridge-by-bridge electrical review and a compatible calibration-matrix processing path. Reuse depends on excitation, input range, channel timing, wiring and software. Connector fit alone does not establish compatibility.
Reviewed 31 October 2026 · MXL Force Metrology
