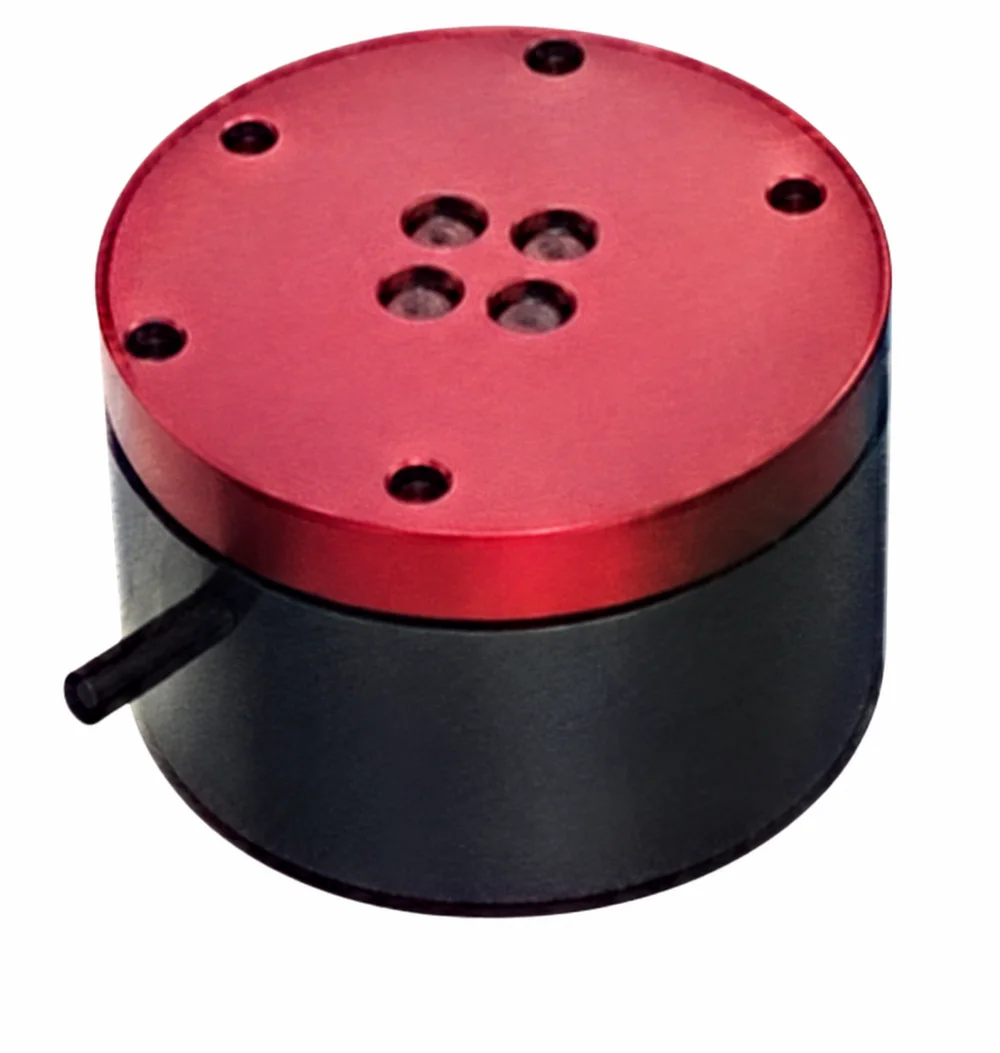

Supplier-derived AI reference illustration. It does not establish the geometry, dimensions or identity of this requested MXL configuration.
Review the requested measurement envelope.
This model page is an engineering request sheet. The identifier and target envelope do not establish a released stock item, approved dimensional drawing or verified replacement.
Review item
Requested MXL configuration
Measured components
3-Axis Force [Fx, Fy, Fz]
Force capacity target
0.5–50 N
Moment capacity target
Not measured; check mechanical moment limit
MXL dimensions and mounting
Drawing review required
Electrical interface
Per-axis bridge input/output resistance, excitation, sensitivity and pinout to confirm
Performance evidence
Crosstalk, combined loads, uncertainty, temperature behavior and safe/ultimate limits to confirm
Resolve the details specific to this configuration.
Confirm the exact low-force range against the reference drawing and calibration.
Review isolation gaps around the live sensing surface; the mounting gap is model-specific.
For low forces, include cable forces, preload and thermal drift in the uncertainty budget.
Published third-party reference / separate from MXL approval
ME-Meßsysteme K3D35 500mN
Ø35 × 28 mm for the cited 500 mN reference variant
Exact resistance, excitation and sensitivity require the ordered-variant datasheet; not assumed from package size
Cited variant: four M3 load-introduction threads and two Ø2 mm E9 alignment holes
Official 500 mN variant page; no revision date declared · Reviewed 2026-10-31. 500 mN is the manufacturer reference variant, not the requested MXL capacity. A compensation matrix can apply; miniature geometry does not establish independent raw outputs.
Confirm independent component ranges and the worst simultaneous load event.
Approve both mounting faces, clearances, fastener engagement and the cable route.
Match excitation, bridge loading, nominal sensitivity and controller input range.
Agree on calibration evidence, useful bandwidth, timing and environmental requirements.
Send the actual original-model revision for replacement work. CAD and lead time are confirmed against the approved configuration rather than inferred from the reference name.
Compare other MXL-3M configurations.
Requested configurations — approval and quotation required
Configuration / measured components
Requested force capacity
Requested moment capacity
MXL dimensions / interface
Calibration / cross-axis limits
Configure
MXL-3M15
3-Axis Force [Fx, Fy, Fz]
2–50 N
Not measured; check mechanical moment limit
Drawing review required
Calibration, crosstalk, safe/ultimate overload and combined-load limits to confirm
