MXL-3A60A
Orthogonal three-axis configuration

3-Axis Force [Fx, Fy, Fz]. Start a configuration review around Interface 3A60A / ME K3D60a.

Configure MXL-3A60A RFQ ↗
+Fx / X+Fy / Y+Fz / Z

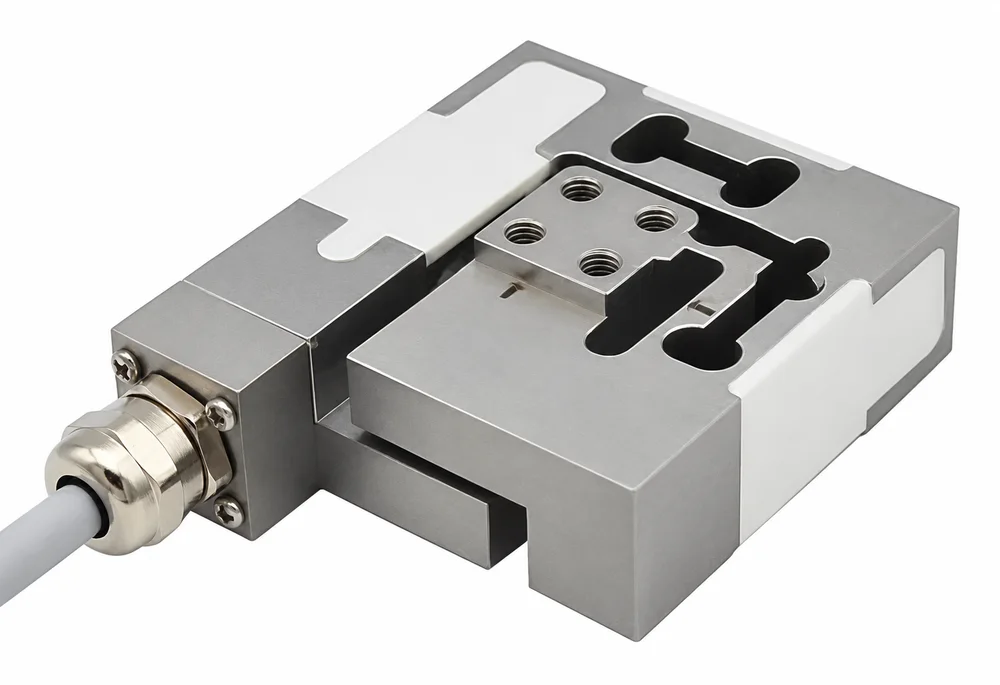

3-Axis Load Cells architecture reference
Supplier-derived AI reference illustration. It does not establish the geometry, dimensions or identity of this requested MXL configuration.

Review the requested measurement envelope.

This model page is an engineering request sheet. The identifier and target envelope do not establish a released stock item, approved dimensional drawing or verified replacement.

Review itemRequested MXL configuration
Measured components3-Axis Force [Fx, Fy, Fz]
Force capacity target10–500 N
Moment capacity targetNot measured; mechanical moment limits still apply
MXL dimensions and mountingDrawing review required
Electrical interfacePer-axis bridge input/output resistance, excitation, sensitivity and pinout to confirm
Performance evidenceCrosstalk, combined loads, uncertainty, temperature behavior and safe/ultimate limits to confirm

Resolve the details specific to this configuration.

Published third-party reference / separate from MXL approval

Interface 3A60A

60 × 60 × 25 mm body; cable clearance and mounting faces require the drawing

Per axis: input 740 Ω; output 700 Ω; nominal ±0.5 mV/V; maximum excitation 10 V

Revised mounting pattern; not backward compatible with legacy 3A60

3A v3.4, 2026-10-19, pages 1–3 · Reviewed 2026-10-31. The source has inconsistent IP labels between its feature text and table. Confirm the actual rating and ordered variant; no MXL rating is inferred.

Check the manufacturer source and revision ↗
Download MXL-3A60A review worksheet (PDF) ↓Request approved CAD / datasheet →Engineering resources →Compare reference interfaces →Select electronics →Review application loads →

Define acceptance before approving the quotation.

  1. Confirm independent component ranges and the worst simultaneous load event.
  2. Approve both mounting faces, clearances, fastener engagement and the cable route.
  3. Match excitation, bridge loading, nominal sensitivity and controller input range.
  4. Agree on calibration evidence, useful bandwidth, timing and environmental requirements.

Send the actual original-model revision for replacement work. CAD and lead time are confirmed against the approved configuration rather than inferred from the reference name.

Configure your engineering request.

Request a quotation and drawing review for MXL-3A. Fields marked * are required for website delivery. You can also open or copy an email template at any stage.

Electronics and calibration requests
Request engineering documents (optional)

Choose what you need with the quotation. Available versions and applicability are confirmed for the supplied configuration.

Download a configuration review worksheet →

Additions are requested budget values, subject to the actual configuration and quotation. Selecting a kit requests a review of software, synchronization, channel count and calibration scope; it does not establish released stock or driver support.

We use these details to respond to your engineering request. Privacy policy.

Review or manually copy the configuration

Direct contact: . No automatic second recipient is added.

Compare other MXL-3A configurations.

Requested configurations — approval and quotation required
Configuration / measured componentsRequested force capacityRequested moment capacityMXL dimensions / interfaceCalibration / cross-axis limitsConfigure
